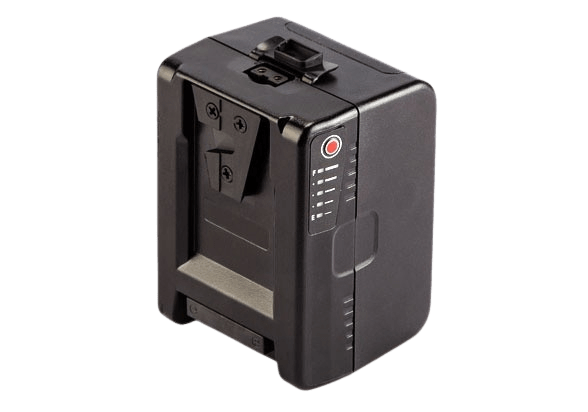

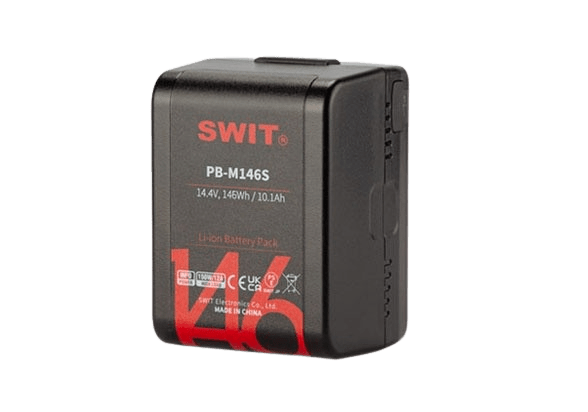

As a new member of PB-M series Pocket V-mount batteries, the PB-M146S provides 146Wh larger capacity to extend run time, and still tiny size for convenient carrying.PB-M146S has 14.4V nominal voltage, 146Wh large capacity, and 5-step LED power indicator, built-in D-tap DC output & charging input, and USB-A 5V/2A power out. The constant load is 150W, 12AYou can use 2x PB-M146S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get one-by-one hot swap uninterrupted power, and equivalent to a standard size V-mount battery.PB-M146S can be charged by all standard V-mount chargers and D-tap chargers. The following chargers are recommended: 1. S-3822S, Portable 2-ch Simultaneous Charger Charge 2x PB-M146S: Approx. 3hrs 45min 2. PC-U130B2, Ultra-Portable Dual D-tap head charger Charge 1x PB-M146S: Approx. 3hrs 45min Charge 2x PB-M146S: Approx. 6 hoursThe PB-M pocket V-mount series have 45Wh, 98Wh and 146Wh, with thesame output sockets and the same bottom size but different thickness.PB-M146S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
