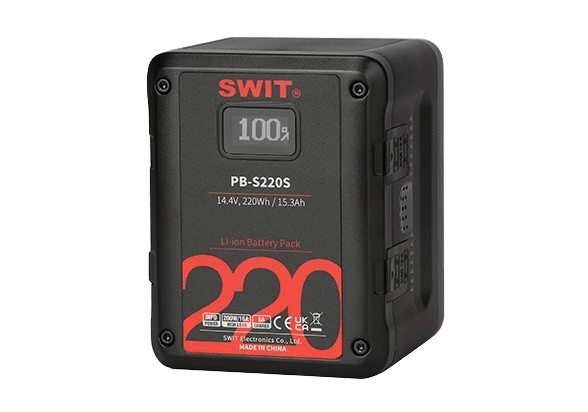

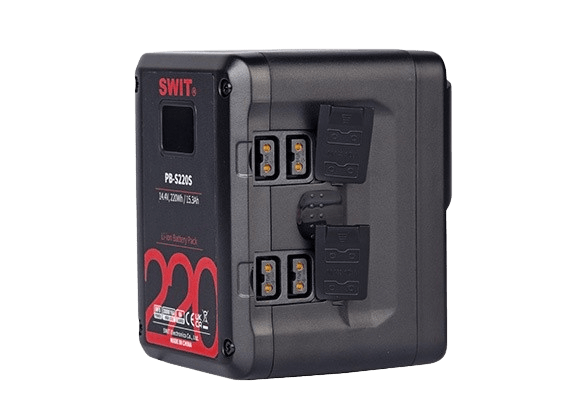

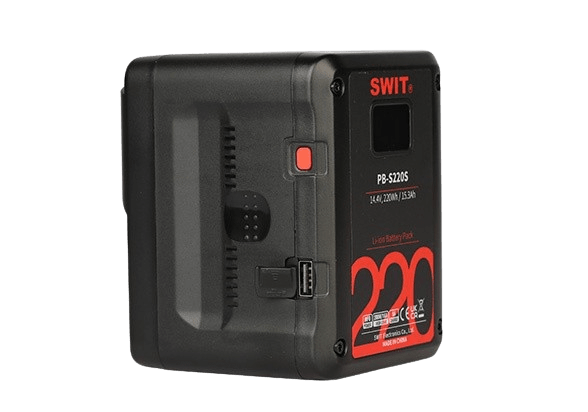

Square shape design for Cine-camerasPB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.220Wh / 15.3Ah CapacityConsists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.High Load for Cine CamerasAt least 200W / 16A loadPB-S220S provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.4× D-tap, 1× USBPB-S220S provides 4x D-tap output sockets with 10A/120W load, and all of them support charging input. The USB socket outputs 5V/2A.6A Fast ChargingUsing SWIT 6A fast chargerPB-S220S supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 220Wh PB-S220S battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hoursDigital Power InfoOLED display accurate remaining run timeThe build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.Battery Protection DisplayWhen any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
