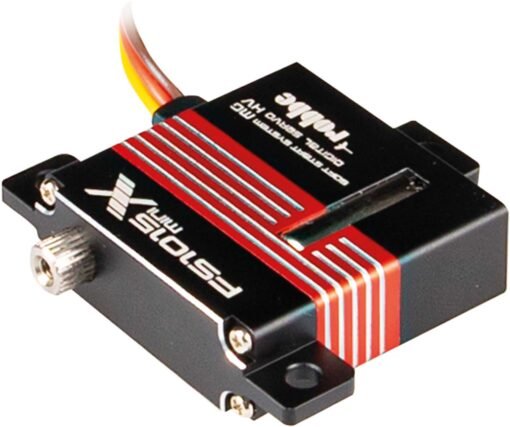

The Robbe FS 1015X Mini is an extraordinarily strong, robust and flat wing servo in a compact, CNC-milled aluminium housing with milled cooling fins for better heat dissipation. It has a stable yet backlash-free metal gearbox and ball bearings on the output. The FS 1015X Mini has an enormously high actuating force of 12 kg/cm at 8.4 volts and can therefore be used on ailerons and flaps in electric and glider models with a wingspan of up to 6 metres. But it can also be used in modern hotliners or gliders of classes F3B/F3F, etc., where high forces are required, thanks to its small dimensions. The FS 1015X Mini is compatible with the KST X10 Mini.The new Robbe X series servos are precision-manufactured high-voltage digital servos in various sizes for different applications in RC modelling. They have CNC-milled aluminium housings with cooling fins for better heat dissipation and robustness, metal/steel gears for low backlash and high positioning precision, high-quality ball bearings, coreless- or brushless motors, high protection against external influences (IP56/67) and a soft start function that moves the servos slowly and gently to the neutral position when they are switched on. These features ensure a long and reliable service life for the servos and therefore also for your models.Bearing:••Servo Speed sec./60° (4,8V) HV:0,14Servo Speed sec./60° (6V) HV:0,13Servo Speed sec./60° (7,4V) HV:0,12Servo Speed sec./60° (8,4V) HV:0,1Servo Torque kg/cm (4,8V) HV:6Servo Torque kg/cm (6V) HV:8Servo Torque kg/cm (7,4V) HV:9Servo Torque kg/cm (8,4V) HV:9,6Gearbox Type:MetalWeight (g):25Length (mm):30Width (mm):10Height (mm):35Servo type:High VoltageGear tooth:25Z/4,93mmBetriebspannung (V) HV:4,8 – 8,4
