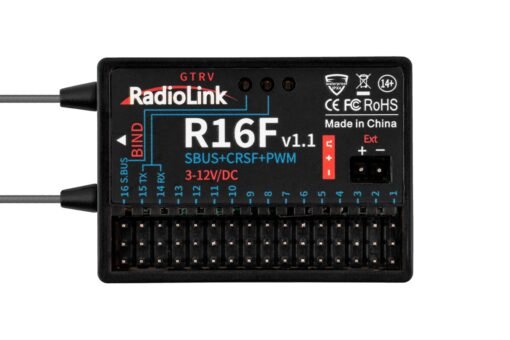

Radiolink R16F 2.4GHz is a 16-channel FHSS with frequency hopping receiver with telemetry compatible with Radiolink T12D and T16D transmitters. It offers four operating modes:with standard pulse width modulated (PWM) signal servo outputs (16 PWM channels on outputs CH1–16)with S.BUS serial output and PWM channels (15 PWM channels on outputs CH1–15 S.BUS on CH16)with S.BUS serial output, CRSF input and output and PWM channels (13 PWM channels on outputs CH1–13 CRSF (RX) on CH14/CRSF (TX) on CH15 S.BUS on CH16)with CRSF input and output and PWM channels (14 PWM channels on CH1–13 and CH16 outputs CRSF (RX) on CH14/CRSF (TX) on CH15)The receiver is suitable for models of all categories – the manufacturer’s claimed range is up to 4000 m in the air (under ideal conditions, without interference).The use of FHSS transmission technology provides high resistance to interference and the possibility of setting fail-safe rates in case of failure or severe interference to the transmitter signal.Pairing with the transmitter is done with a pairing button on the receiver, operating states are indicated by an LED.The receiver is equipped with contact rails for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the pins are oriented in the direction of the longitudinal axis of the receiver.The receiver allows transmission of basic telemetry data – receiver supply voltage, received signal strength (RSSI) and external (e.g. drive) battery voltage in the range of 3–33.6 V (1–8S LiPo). When using the Radiolink control unit, additional telemetry data from the control unit can be transmitted to the T12D or T16D transmitter.The 3–12 V operating range allows operation with power from 1–2S LiPo/Li-ion, 2S LiFe, 4–8 cell NiMH or 5–12 V BEC circuits.The receiver has upgradable firmware (via USB-C socket).Receiver kit includes: R16F receiver, user manual.Modulation/coding2.4GHz FHSSChannels (PWM) – (S-BUS)15 – 16Serial outputS-BUSFunctionFail-safe,TelemetryPower supply4.8V,6V,7.2V,7.4V,12V,9.6V,3.6V,3.7V,6.4V,6.6VPower consumption without servos [mA]50Length [mm]45Width [mm]32Height [mm]15Weight [g]17
