FrSKY S.Port To UART Converter (With 2 ADC Ports) A B (Pair)

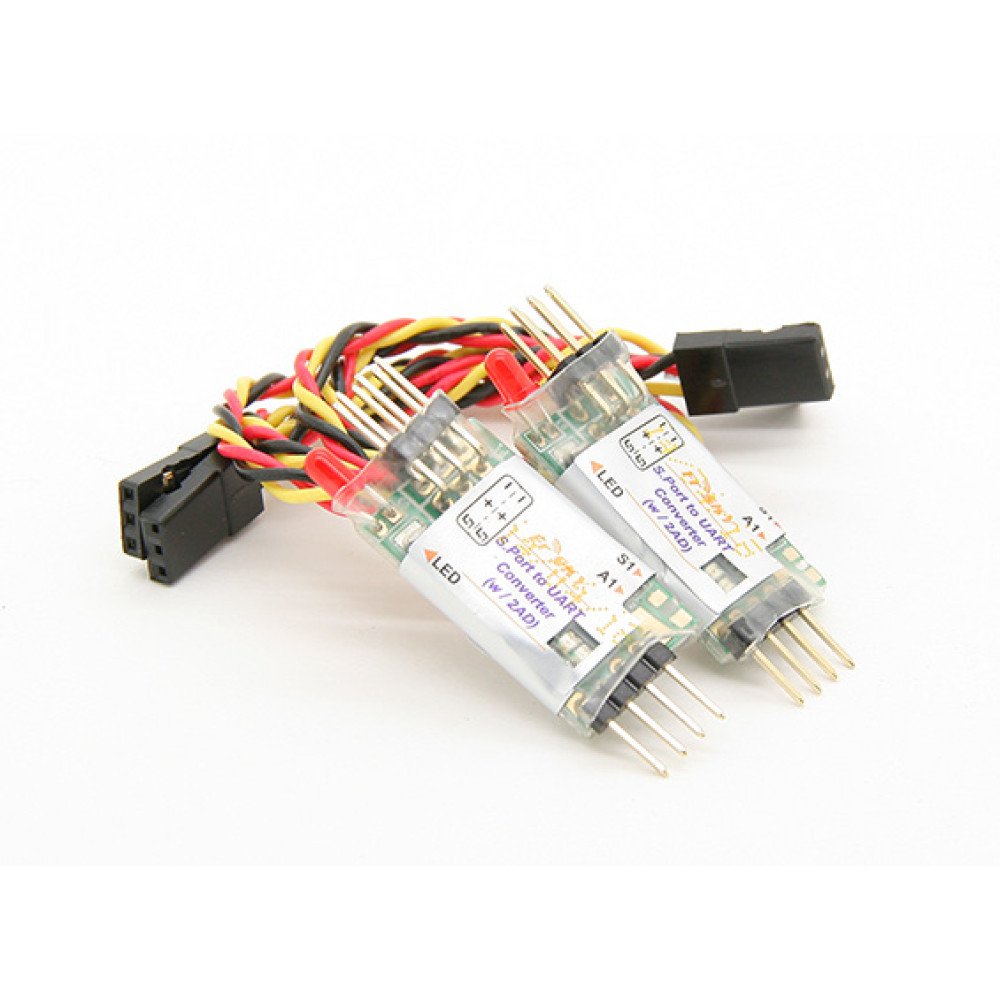

FrSKY S.Port To UART Converter (With 2 ADC Ports) The FrSKY S.Port to UART Converter supports a link with external analog devices via two ADC ports for Serial port Data-Transmission at S.Port BUS and analog signal AD input via S.Port.  The pack contains module A and B along with 2 x male to male jumper cables. Functions: 1. Serial port Data-Transmission at S.Port BUS.2. Analog Signal AD input via S.Port. For example using XJT module and X8R receiver to demonstrate how to use Data-Transmission through the S.Port BusThe Host (Type A) is connected with the S.Port of the XJT module, while the Remote (Type B) is connected with S.Port of the X8R receiver. (Note that Mode A and Mode B positions are interchangeable.)When input data are received through the Type B UART, the Type A UART port will output the same data, and vice versa.To Enable Data-transmission on S.Port Bus, the Host (Type A) and Remote (Type B) devices must be used as pair and set in the same Capacity Mode. Specs:Mode: SP2UARTOperating Voltage: DC 4 -10 VWeight: 3gSize: 44 x 15 X 7mmCurrent Draw: 20mA @5VOperating Temperature Range: -40 ~ 85 Degrees CThe FrSKY S.Port to UART Converter supports a link with external analog devices via two ADC ports for Serial port Data-Transmission at S.Port BUS and analog signal AD input via S.Port.
